Schneider Overload Relays in Tanzania A Practical Guide

Overload relays are a simple but critical piece of any motor control system. For workshops, factories, and service providers across Tanzania, choosing the right Schneider Electric overload relay ensures motors run reliably, downtime is minimized, and maintenance stays predictable.

What is an overload relay and why it matters

An overload relay protects electric motors from overheating caused by prolonged overloads or stalled conditions. It senses motor current and opens the control circuit when current stays above a safe level for too long. Without a working overload relay, a motor can suffer winding damage, reduced life, or sudden failure — all of which cause costly repairs and production losses.

Schneider Electric makes several proven overload relay families (thermal and electronic types). Thermal relays are simple, reliable, and cost-effective. Electronic relays add precision and extra features such as phase-failure detection and adjustable trip curves.

Common Schneider relay types

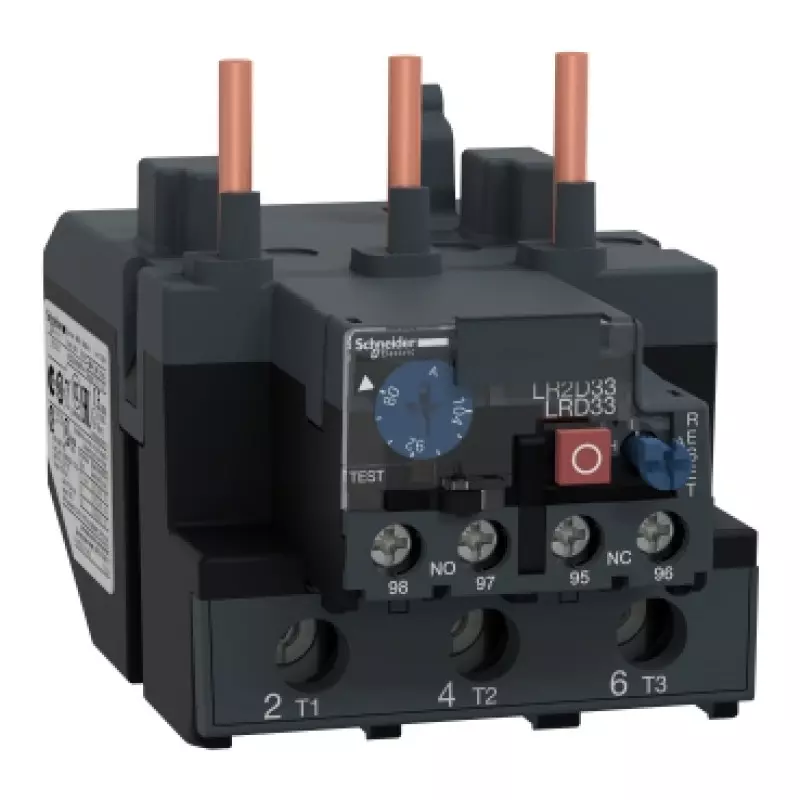

• Thermal overload relays (LRD series): Adjustable current range, robust, ideal for standard motor protection where simplicity and cost-effectiveness are priorities.
• Electronic overload relays (LR9 and other series): Offer higher accuracy, additional protection functions (phase loss, phase imbalance), and digital adjustment — useful where motors are critical or operating conditions vary.
• Modular accessories: Many relays accept auxiliary contacts, mechanical or electrical reset options, and under-voltage or shunt-trip accessories for remote control and safety interlocks.

How to choose the right relay for your motor

• Match the full load current (FLC) Select a relay whose adjustable current range covers the motor’s FLC. The relay should be set to the motor’s rated current or slightly above, following manufacturer guidance.
• Consider the motor size and duty cycle For frequent starts, long ramps, or heavy-duty use, choose a relay with an appropriate trip class and, if needed, an electronic model that supports long start protection.
• Trip class and start conditions Trip classes (for thermal relays) determine delay before tripping choose according to starting torque and thermal tolerance of the motor.
• Voltage and system compatibility Ensure the relay and its associated contactor or starter are rated for the system voltage and supply type used at your site.
• Environmental factors If the installation is in dusty, humid, or hot environments (common in parts of Tanzania), choose components with suitable protection ratings and follow recommended spacing/ventilation practices.
• Reset and safety needs Decide between manual and automatic reset. Manual reset is safer where unattended restarts create hazards.

Troubleshooting common issues

• Nuisance trips: Check for short-term inrush currents, improper relay settings, or loose connections causing heating. Consider an electronic relay if inrush is high.
• Failure to trip: Verify relay settings, power to the relay’s sensing elements, and connections. Replace if the relay has internal damage.
• Frequent trips under light load: Inspect motor for mechanical binding, bearing problems, or supply voltage imbalance.

will reduce breakdowns and maintenance costs. Prioritize genuine parts from trusted suppliers, proper installation by skilled technicians, and routine inspection to get the best long-term value from your motor protection system.
